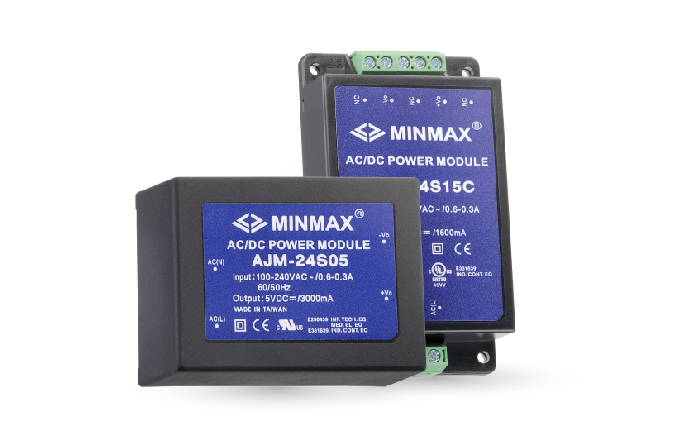

AJM-24 Series
24W AC-DC Power Supplies
Features
- Fully Encapsulated Plastic Case for PCB, Chassis and DIN-Rail Mounting Version
- Universal Input 85-264VAC, 47-440Hz
- I/O Isolation 4000VAC with Reinforced Insulation
- Operating Ambient Temp. Range -40℃ to +80℃
- Overload/Voltage and Short Circuit Protection
- EMI Emission EN 55011/32 Class B Approved
- EMS Immunity EN 61000-4-2,3,4,5,6,8,11 Approved
- Medical EMC Standard with 4th Edition of EMI EN 55011 & EMS EN 60601-1-2 Approved
- Medical Safety with 2xMOPP per 3rd Edition of IEC/EN 60601-1 & ANSI/AAMI ES60601-1 Approved
- UL508 Safety Approval Specifically for Industrial Application
- UL/cUL/IEC/EN 62368-1(60950-1) Safety Approval & CE Marking
OVERVIEW
The new MINMAX AJM-24 series is a range of fully encapsulated AC-DC power modules. These high performance products feature an extended operating temperature range of -40℃ to +80℃. Universal input voltage 85-264VAC and UL/IEC/EN safety approvals including medical safety and UL 508 listing qualify these power supplies modules for applications in products with worldwide markets EMI Emission EN 55011/32 Class B Approved. The AJM-24 series power modules provide a perfect solution for many space critical applications in commercial, medical and industrial electronic equipment.
Specifications
| Input Voltage Range | 85 - 264VAC (120 - 370VDC) / 47 - 440Hz | ||
| Output Voltage Accuracy | ±2.0% typ. | ||
| Line Regulation | ±0.5% typ. | ||
| Load Regulation | Single | ±0.5% typ. | |
| Dual | ±2.5% typ. | ||
| Ripple & Noise (20MHz) | 5V | 1.5%Vp-p of Vo typ. | |
| others | 1.0%Vp-p of Vo typ. | ||
| Efficiency | Up to 84% | ||
| I/O Isolation Voltage | 4000VAC min. (Reinforced Insulation) | ||
| Operating Temp. Range | -40°C to +80°C (See Power Derating) | ||
| Over Load Protection | >105% min., Hiccup (Auto. Recovery) | ||
| Short Circuit Protection | Continuous (Auto. Recovery) | ||
| Case Material | Plastic (UL94V-0 rated) | ||
| Safety Approval | UL/cUL/IEC/EN 62368-1(60950-1) , UL508, 2xMOPP per 3rd Edition of IEC/EN 60601-1 & ANSI/AAMI ES60601-1, CB-Report, CE Marking | ||
