MDW1000 Series
2W DC-DC Converters
MDW1000 Series
MDW1000 Series
Features
  • Industrial Standard DIP-16 Package
  • Wide 2:1 Input Voltage Range
  • Fully Regulated Output Voltage
  • I/O Isolation 1500 VDC
  • Operating Ambient Temp. Range -40℃ to +80℃
  • Short Circuit Protection
  • UL/cUL/IEC/EN 60950-1 Safety Approval
OVERVIEW

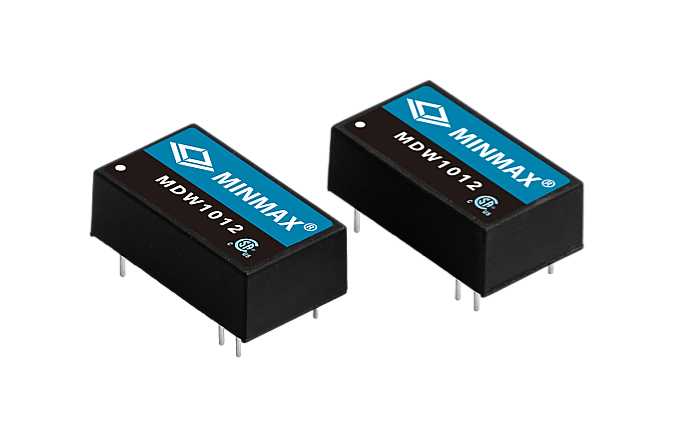

The MINMAX MDW1000 series is a range of isolated 2W DC-DC converter modules featuring fully regulated output voltages and wide 2:1 input voltage ranges. The products come in a compact DIP-16 package with a low height of just 8.0 mm (0.31 inch). An excellent efficiency allows an operating temperature range of -40℃ to +80℃. These DC-DC converters offer an ideal solution for many space critical applications in battery-powered equipment and instrumentation.

Specifications
Output Voltage Accuracy ±2.0% max.
Line Regulation ±0.3% typ.
Load Regulation ±0.75% max.
Ripple & Noise (20MHz) 30mVp-p typ.
Efficiency Up to 81%
I/O Isolation Voltage 1500VDC min.
I/O Isolation Capacitance 420pF max.
Operating Ambient Temp. Range -40℃ to +80℃ (See Derating Curve)
Short Circuit Protection Continuous (Auto. Recovery)
Case Material Plastic (UL94V-0 rated)
Safety Approval  UL/cUL/IEC/EN 60950-1 Safety Approval
