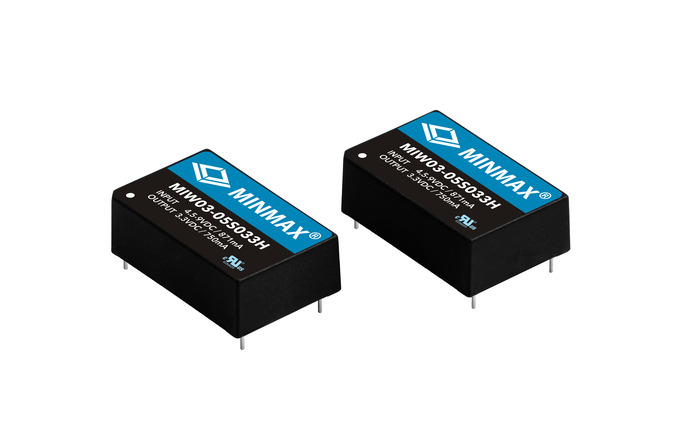

MIW03H Series
3W DC-DC Converters
Features
- Industrial Standard DIP-24 Package
- Ultra-wide 2:1 Input Voltage Range
- Fully Regulated Output Voltage
- I/O Isolation 3000 VDC
- Operating Ambient Temp. Range -40℃ to +85℃
- No Min. Load Requirement
- Under-voltage, Overload and Short Circuit Protection
- EMI Emission EN 55032 Class A Approved
- UL/cUL/IEC/EN 62368-1(60950-1) Safety Approval & CE Marking
OVERVIEW
The MINMAX MIW03 series is a range of high performance DC-DC converter modules, designed as a cost optimized replacement for the highly popular MIW1000 series. The converter features wide 2:1 input ranges and tight output voltage regulation. Excellent efficiency allows an operating temperature up to +70℃ at full load. The product comes in a DIP-24 plastic package with industry standard footprint. Typical applications for these economical priced DC-DC converters are industrial electronics, instrumentation or communication equipment.
Specifications
| Output Voltage Accuracy | ±2.0% max. |
| Line Regulation | ±0.3% typ. |
| Load Regulation | ±0.3% typ. |
| Ripple & Noise (20MHz) | 70mVp-p typ. |
| Efficiency | Up to 85% |
| I/O Isolation Voltage | 3000VDC min. |
| I/O Isolation Capacitance | 300pF max. |
| Operating Ambient Temp. Range | -40℃ to +85℃ (See Derating Curve) |
| Short Circuit Protection | Continuous (Auto. Recovery) |
| Case Material | Plastic (UL94V-0 rated) |
| Safety Approval | UL/cUL/IEC/EN 62368-1(60950-1), CB-Report , CE Marking |
