- Smallest Encapsulated 40W Converter
- Ultra-compact 2"×1" Package
- Ultra-wide 4:1 Input Voltage Range
- Fully Regulated Output Voltage
- Excellent Efficiency up to 91%
- I/O Isolation 1500 VDC
- Operating Ambient Temp. Range -40℃ to +80℃
- No Min. Load Requirement
- Overload/Voltage/Temp. and Short Circuit Protection
- Remote On/Off Control, Output Voltage Trim
- Shielded Metal Case with Insulated Baseplate
- UL/cUL/IEC/EN 62368-1(60950-1) Safety Approval & CE Marking

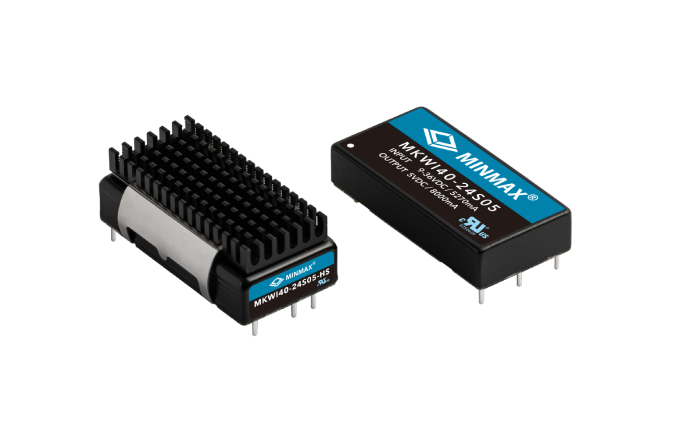

The MINMAX MKWI40 series is the latest generation of high performance DC-DC converter modules setting a new standard concerning power density. The product offers fully 40W in an encapsulated, shielded metal package with dimensions of just 2.0"x1.0"x0.4". All models provide ultra-wide 4:1 input voltage range and precisely regulated output voltages. Advanced circuit topology provides a very high efficiency up to 91% which allows an operating temperature range of -40℃ to +80℃. Further features include remote On/Off, trimmable output voltage, under-voltage lockout as well as overload and over-temperature protection. Typical applications for these converters are battery operated equipment, instrumentation, distributed power architectures in communication and industrial electronics and many other space critical applications.
| Output Voltage Accuracy | ±1.0% max. | ||
| Line Regulation | ±0.5% max. | ||
| Load Regulation | Single | ±0.5% max. | |
| Dual | ±1.0% max. | ||
| Ripple & Noise (20MHz) | 3.3, 5V | 100mVp-p typ. | |
| others | 150mVp-p typ. | ||
| Efficiency | Up to 91% | ||
| I/O Isolation Voltage | 1500VDC min. | ||
| I/O Isolation Capacitance | 1500pF max. | ||
| Operating Ambient Temp. Range | -40°C to +80°C (See Derating Curve) | ||
| Short Circuit Protection | Continuous (Auto. Recovery) | ||
| Output Voltage Trim | 24V | ±20%/-10% max. | |
| Others | ±10% max. | ||
| Remote ON/OFF | Enable High | ||
| Case Material | Metal (6 side shielded with insulated baseplate) | ||
| Safety Approval | UL/cUL/IEC/EN 62368-1(60950-1), CB-Report, CE Marking | ||
