MSDW1000 Series
2W DC-DC Converters
Features
- Industrial SMD Package
- Wide 2:1 Input Voltage Range
- Fully Regulated Output Voltage
- I/O Isolation 1500 VDC
- Operating Ambient Temp. Range -40℃ to +85 ℃
- Under-voltage and Short Circuit Protection
- Conducted EMI meets EN55022 Class A
- Cleaning-washable Process Available(option)
- Qualified for Lead-free Reflow Solder Process According to IPC/JEDEC J-STD-020D.1
- Tape & Reel Package Available
- UL/cUL/IEC/EN 60950-1 Safety Approval
OVERVIEW

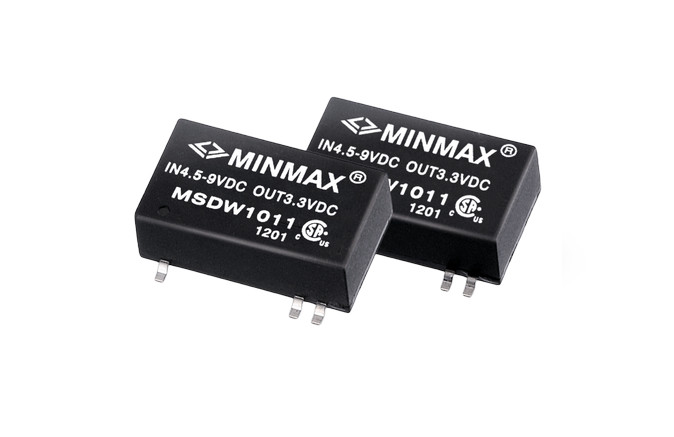

The MINMAX MSDW1000 series is a range of isolated 2W DC-DC converter modules featuring fully regulated output voltages and wide 2:1 input voltage ranges. The products come in a compact SMD package with a small footprint and low package height of just 8.0 mm (0.31 inch). All models are qualified for lead free reflow solder processes according IPC J-STD-020D.1 standard. An excellent efficiency allows an operating temperature range of -40℃ to +85℃. The compact dimensions of these DC-DC converters make them an ideal solution for many space critical applications in battery-powered equipment and instrumentation.
Specifications
| Output Voltage Accuracy | ±2.0% max. |
| Line Regulation | ±0.3% typ. |
| Load Regulation | ±0.5% typ. |
| Ripple & Noise (20MHz) | 50mVp-p typ. |
| Efficiency | Up to 81% |
| I/O Isolation Voltage | 1500VDC min. |
| I/O Isolation Capacitance | 250pF max. |
| Operating Ambient Temp. Range | -40℃ to +85℃ (See Derating Curve) |
| Short Circuit Protection | Continuous (Auto. Recovery) |
| Case Material | Plastic (UL94V-0 rated) |
| Safety Approval | UL/cUL/IEC/EN 60950-1, CB-Report |
